传感器
特点和用途
●精度高、抗偏载能力强
●容易安装，IP66
●接受定制规格
●大量程、可用于飞机、轮船安装测试

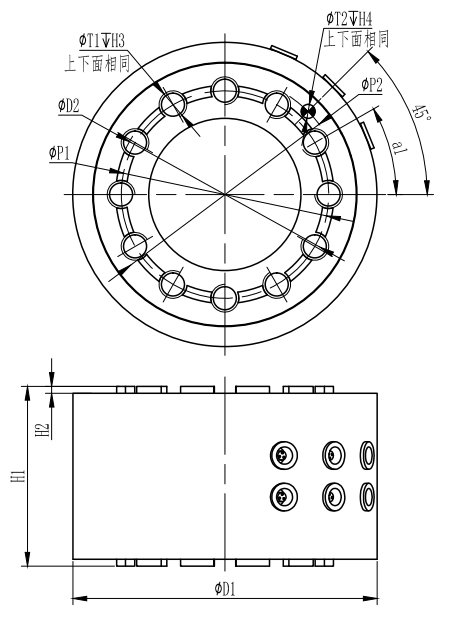

安装尺寸
| 量程 | H1 | D1 | H2 | P1 | D2 | T1 | H3 | P2 | T2 | H4 | a1 |
| Fx=Fy=30kN,Fz=100kN Mx=My=1.5kN.m Mz=1kN.m | 52 | 88 | 2 | 60±0.1 | 63-0.05 | M8 | 8 | 68+0.05 | 4H7 | 5 | 12×30° |
| Fx=Fy=80kN,Fz=200kN Mx=My=Mz=5kN.m | 60 | 124 | 90±0.1 | 95-0.05 | M12 | 10.5 | 103+0.05 | ||||
| Fx=fy=200kN,Fz=500kN Mx=My=20kN.m,Mz=10kN.m | 82 | 169 | 130±0.1 | 136-0.05 | M16 | 22 | 145+0.05 | ||||
| Fx=Fy=300kN,Fz=1000kN Mx=My=25kN.m,Mz=15kN.m | 112 | 180 | 145-0.05 | M20 | 16 | 155+0.05 | 7 | ||||
| Fx=Fy=500kN,Fz=1000kN Mx=My=100kN.m,Mz=25kN.m | 180 | 250 | 5 | 200±0.2 | 205-0.1 | 30 | 220+0.05 | 6H7 | 8 | ||
| Fx=Fy=500kN,Fz=4000kN Mx=My=Mz=200kN.m | 180 | 352 | 280±0.2 | 300-0.5 | M30 | 30 | 280-0.05 | 8H7 | 10 | 16×22.5+11.25° |
参数表
| 参数 | Specifications | 技术指标/Technique |
| 额定量程 | Nomial load | 见表格 |
| 零点输出 | Zero balance | ±5%mV/V |
| 非线性 | Non-linearity | 0.3%F.S. |
| 滞后 | Hysteresis | 0.3%F.S. |
| 重复性 | Repeatability | 0.3%F.S. |
| 输入电阻 | Input impedance | ≥350Ω |
| 输出电阻 | Output impedance | ≥350Ω |
| 绝缘电阻 | Insulation | ≥2000MΩ/50VDC |
| 激励电压 | Recommended excitation | 5~12V |
| 最大激励电压 | Maxmum excitation | 15V |
| 温度补偿范围 | Compensated temp range | -10~40℃ |
| 工作温度范围 | Operation temp range | -20~60℃ |
| 安全超载 | Safe overload | 120%F.S. |
| 极限超载 | Ultimate overload | 150%F.S. |
| 电缆尺寸 | Cable size | 6-φ4×4000mm |
| 防护等级 | Protection class | IP65 |

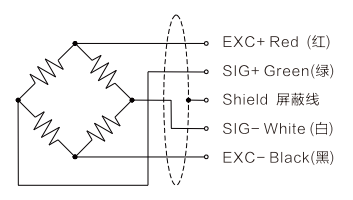

配线图 |
 |
