传感器

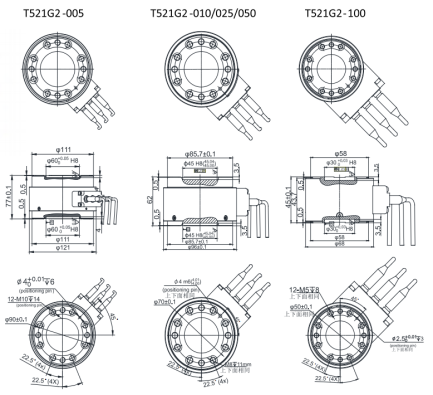

安装尺寸
| Code | Measurement range |
| 005 | Fx=1kN;Fy=1kN;Fz=5kN;Mx=0.05kNm;My=0.05kNm;Mz=0.05kNm |
| 010 | Fx=2kN;Fy=2kN;Fz=10kN;Mx=0.15kNm;My=0.15kNm;Mz=0.15kNm |
| 025 | Fx=5kN;Fy=5kN;Fz=25kN;Mx=0.35kNm;My=0.35kNm;Mz=0.25kNm |
| 050 | Fx=10kN;Fy=10kN;Fz=50kN;Mx=0.7kNm;My=0.7kNm;Mz=0.5kNm |
| 100 | Fx=20kN;Fy=20kN;Fz=100kN;Mx=2kNm;My=2kNm;Mz=1.5kNm |
参数表
| 参数 | Specifications | 技术指标/Technique |
| 输出方式 | Output mode | 模拟量输出 |
| 输出灵敏度 | Rated output | ≈1.0mV/V |
| 零点输出 | Zero balance | ±2%F.S. |
| 非线性 | Non-linearity | 0.03%F.S. |
| 滞后 | Hysteresis | 0.03%F.S. |
| 重复性 | Repeatability | 0.03%F.S. |
| 互扰误差 | Interference error | 1%F.S. |
| 蠕变（30min） | Creep(30min) | 0.05%F.S. |
| 温度灵敏度漂移 | Temp.effect on output | 0.05%F.S/10℃ |
| 零点温度漂移 | Temp.effect on zero | 0.05%F.S./10℃ |
| 绝缘电阻 | Insulation | ≥5000MΩ/100VDC |
| 激励电压 | Recommended excitation | 5~12V |
| 最大激励电压 | Maximum excitation | 15V |
| 温度补偿范围 | Compensated temp range | -10-40℃ |
| 工作温度范围 | Operation temp range | -20~75℃ |
| 安全超载 | Safe overload | 150%F.S. |
| 极限超载 | Ultimate overload | 300%F.S. |
| 电缆线尺寸 | Cable size | φ4×4000mm |
| 防护等级 | IP Class | IP66 |

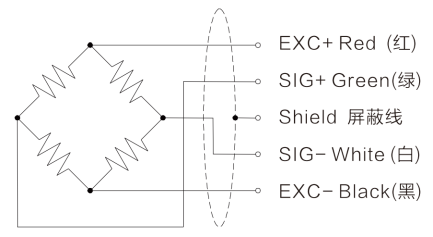

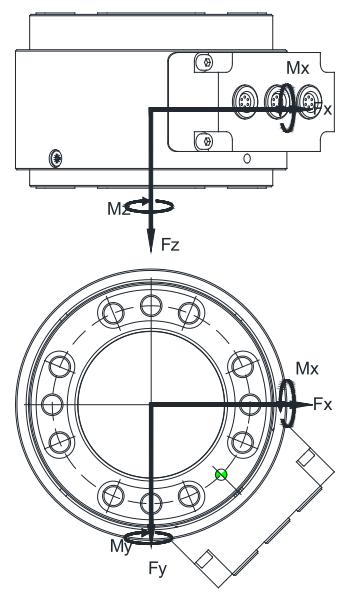

受力方向 | 接线方式 |
 |  |
